Description

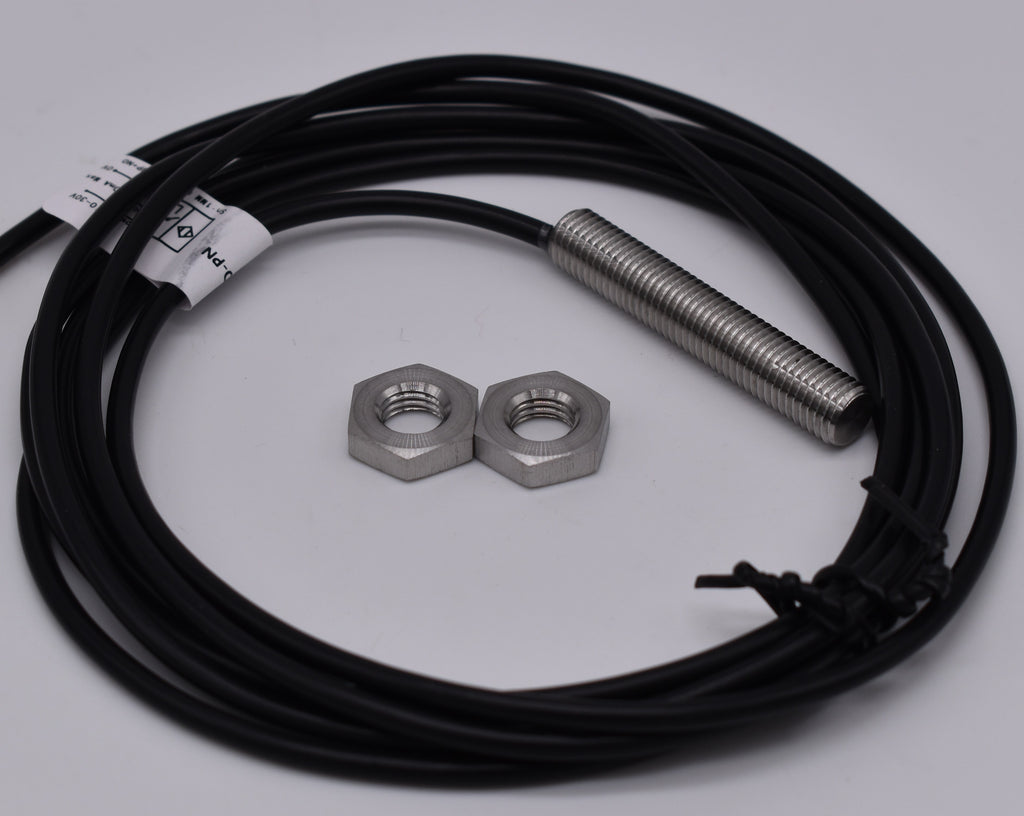

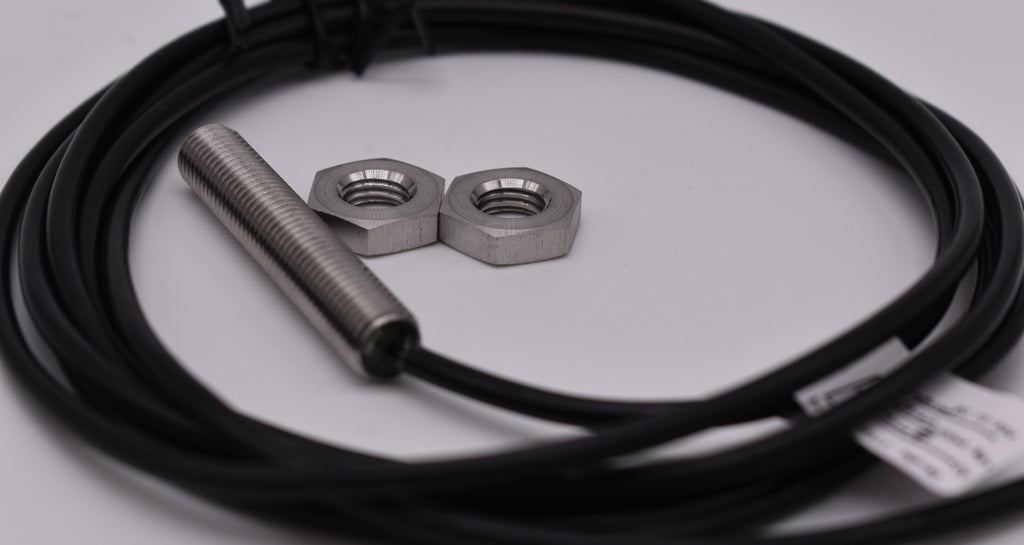

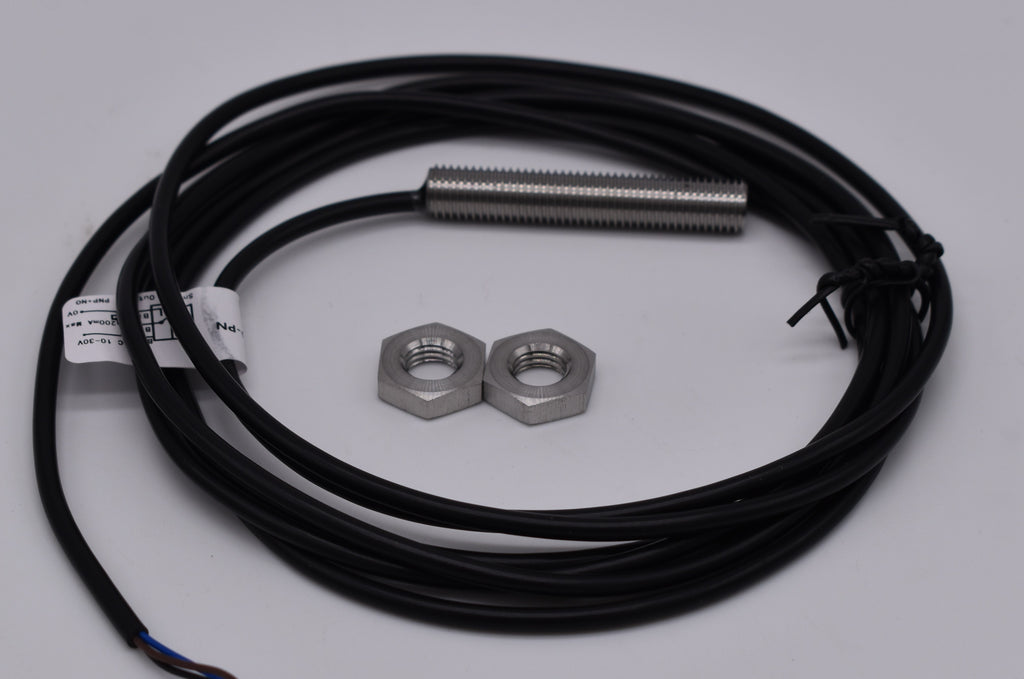

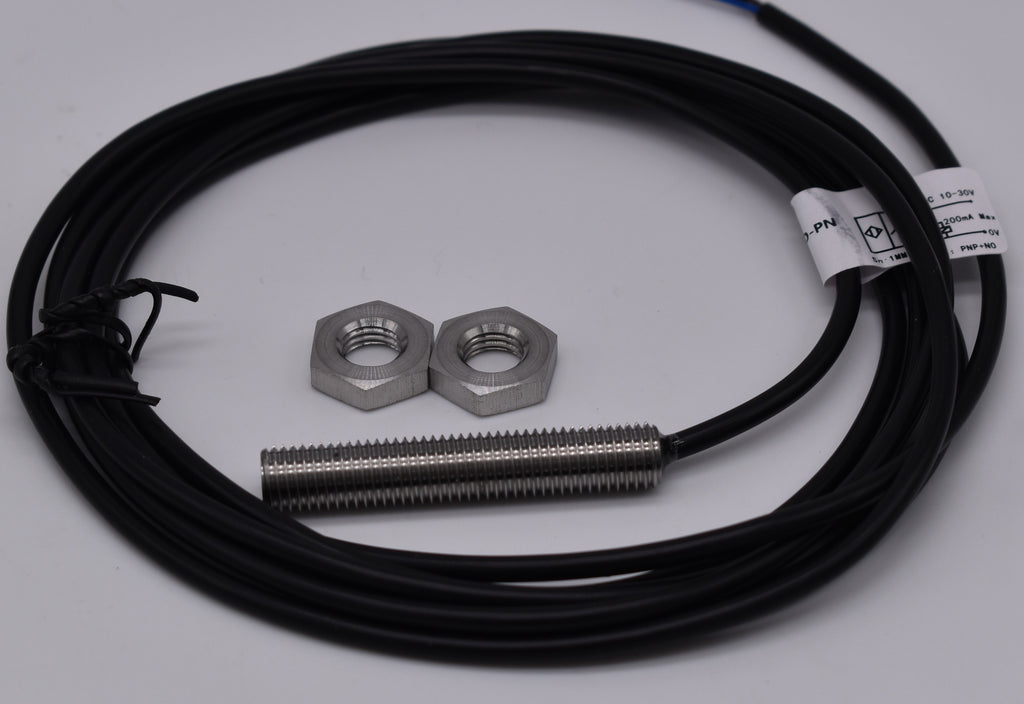

5/16"-24 HALL EFFECT SPEED SENSOR
**OUTPUTS POSITIVE VOLTAGE (WORKS WITH DAVIS PROFILER AND STRANGE ULTRA CASE)**
- Triggered by ferrous material (Not magnets)
- 5/16"x 24 body
- Built in LED light for easy setup
- Stainless steel body
- Detection range 0.1MM to 1MM (0.004" to 0.04")
- Flush mount
- Supply voltage 10V-30V
- Short circuited/reverse protection built in.
- Working temperature -13F to 176F
- IP67 rated (water proof)
- Normally open signal
- Max switching frequency 8,000HZ
wiring:
Brown = power supply (10-30VDC)
Blue = Clean ground
Black = Signal wire (Outputs +V to data logger)
